The Evolution of the Dental RVG Sensor: From CMOS to Photon-Counting

Digital radiography has fundamentally transformed modern dentistry. What initially served as a replacement for traditional radiographic film has quickly evolved into an indispensable diagnostic tool. Today, the Dental RVG Sensor actively influences treatment planning, patient communication, and critical clinical decision-making across endodontics, periodontics, restorative dentistry, and implantology. Whether a practice is focused on routine fillings or complex full-mouth rehabilitations, the choice of imaging hardware carries significant weight.

As dental technology advances, clinicians frequently encounter new terms such as CMOS, direct conversion, and photon-counting. While these represent different engineering approaches, the primary concern for a dentist remains clinical utility: How do these differences impact diagnosis and clinical workflow? To understand this, we must examine how a Digital intraoral X-ray sensor converts X-rays into the digital images.

The Anatomy of Dental RVG Evolution

The clearest way to understand the clinical impact of different imaging sensors is to follow the simplified path of an X-ray photon.

• The Foundation (CCD): Early digital radiography was established by CCD (Charge-Coupled Device) sensors. Transmitted X-rays hit a scintillator layer, converting them into visible light. The CCD then stored this charge, shifting it serially across the array to form an image. This indirect conversion meant that the optical spread of visible light could sometimes soften fine anatomical details.
• The Shift to CMOS: The CMOS RVG sensor generally maintains the indirect pathway converting X-rays to light, and then to a digital charge but it completely revolutionized readout electronics. By allowing each pixel to be addressed directly, CMOS delivers much faster readout speeds and near-instantaneous chairside image display. However, it still operates within the physical limitations of indirect detection, meaning scintillator blur can occasionally occur.
• The Photon-Counting Revolution: A Photon-counting intraoral sensor introduces a radical change via a direct-conversion system. An X-ray photon is absorbed directly by a semiconductor layer, generating a digital signal without an intermediate visible-light step. This eliminates the light-spread penalty, reduces electronic noise, and generally provides a higher contrast-to-noise ratio.

Carestream RVG 5200: The Strengths of a Refined CMOS Ecosystem

A prime example of a highly refined, mature indirect detector is the Carestream RVG 5200 Dental Intraoral Sensor. Rather than chasing untested hardware trends, this system focuses heavily on predictable daily imaging and long-term workflow stability.

This CMOS RVG sensor is built on a proven indirect conversion stack designed to seamlessly enhance the modern dental practice:

• Technical Architecture: It utilizes a well-documented CMOS structure combined with a scintillator and an optical-fiber layer.
• High-Quality Imaging: It boasts a measured resolution of 16 lp/mm and captures 4096 gray levels at a 12-bit depth for clear, consistent imaging.
• Clinical Enhancements: It features anatomy-oriented enhancement modes tailored for endodontics, periodontics, and evaluating the dentin-enamel junction.
• Workflow Integration: The RVG sensor integrates with CS Imaging Software, supporting rapid single captures, organized full-mouth series, and seamless workstation sharing. Additionally, its broad TWAIN compatibility ensures that the sensor can seamlessly connect with any imaging and clinical practice management software, providing practices with maximum operational flexibility without being locked into a single ecosystem.
• Proven Durability: Rigorously tested for ten years of intense use, it features a shock-resistant, waterproof casing for operatory-to-operatory reliability.

For practices prioritizing a widely adopted, standardized workflow, this implementation of CMOS technology provides immense clinical value.

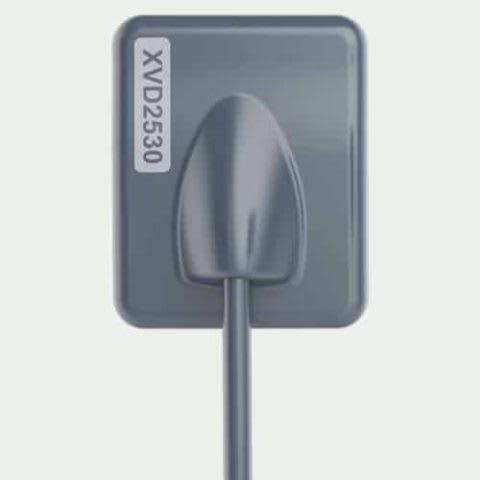

Xpect Vision: Bringing Direct-Conversion to the Chairside

Representing a newer generation of detector technology, the Xpect Vision RVG sensor integrates photon-counting, direct-conversion architecture directly into routine intraoral imaging. Unlike traditional systems, this detector operates entirely without a scintillator.

By eliminating the intermediate light-conversion step, this Photon-counting intraoral sensor aims to preserve significantly more of the original diagnostic information:

• Technical Architecture: It utilizes a direct-conversion setup relying on specialized silica-based chips.
• High-Fidelity Resolution: It has a spatial resolution of 14-16 lp/mm alongside a robust 16-bit dynamic range.
• Speed and Durability: It maintains excellent chairside convenience with a rapid 3-second imaging time. It also features IP68 protection and is tested for over 100,000 cable bends.
• Clinical Applications: The Digital intraoral X-ray sensor easily exports to common file formats like DCM, JPEG, and PNG over a standard USB 2.0 connection.
• Diagnostic Edge: Because there is no scintillator layer, light cannot spread and blur the image. For clinicians, this translates to an enhanced ability to visualize fine anatomical structures, complex root canals, accessory canals, and subtle crestal bone changes.

A Balanced Clinical Comparison

When evaluating modern imaging equipment, it is important to compare products as holistic clinical tools rather than purely debating abstract physics.

The Role of Implementation and Support

Ultimately, the successful integration of any Dental RVG Sensor depends heavily on its implementation platform. A clinic evaluating these products is not just buying a piece of hardware; they are comparing onboarding, software setup, staff training, and ongoing continuity of service. Choosing the right technology partner is as critical as choosing the right detector physics.

The Unicorn DenMart intraoral sensor range actively supports both established CMOS options (like the Carestream RVG 5200) and emerging photon-counting systems (like Xpect Vision). By providing professional installation, preventive maintenance, and a nationwide network of technical engineers, they help enable customized radiology pathways that best fit a practice’s specific diagnostic goals.

Conclusion

The evolution of the Digital intraoral X-ray sensor is just not a march from “older” to “better”. Instead, it is a continuous progression of detector architectures specifically tailored to improve clinical decision-making.

The CMOS RVG sensor has defined modern digital dentistry by delivering fast, remarkably reliable, and deeply proven imaging solutions that streamline the daily workflow. Conversely, the Photon-counting intraoral sensor alters the very physics of image formation, offering a powerful pathway for detail preservation and subtle structural visualization. Whether relying on the deep documentation and ecosystem maturity of CMOS or the emerging contrast capabilities of photon-counting, the objective remains exactly the same: empowering clinicians to diagnose accurately and treat patients with absolute confidence.
