Available · Dental Suctions

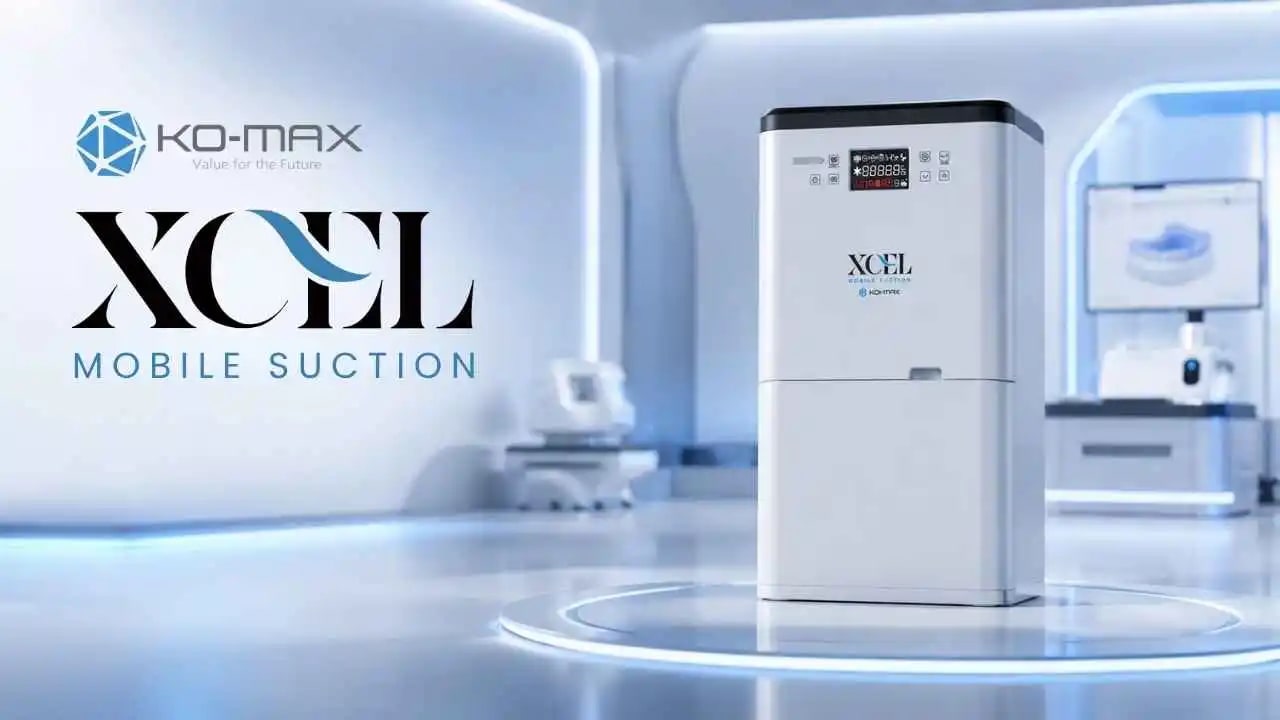

The XCEL CAD/CAM Suction by Ko-max is a bag-free dust extraction unit designed for use with CAD/CAM systems. Built to manage dust generated during milling and other CAD/CAM processes, XCEL combines powerful suction with intelligent filter management and convenient monitoring functions.
Its membrane filter incorporates an automatic vibration cleaning system that shakes accumulated dust from the filter, helping maintain filtration performance while reducing the need for frequent filter replacement. The system also offers real-time monitoring, adjustable suction levels and a CAD/CAM machine interface for easier integration into the digital laboratory workflow.
With a brushless motor, 8.71 L dust collection capacity, anti-static suction hose and multiple suction settings, XCEL provides a practical dust-management solution for CAD/CAM environments.
Automatic Vibration Filter Cleaning
The membrane filter uses an integrated vibration mechanism to shake accumulated dust from the filter. This automatic cleaning function helps maintain filter performance and can reduce filter replacement requirements.
Bag-Free Dust Collection
XCEL is designed as a bag-free extraction unit, simplifying dust collection and eliminating the need for disposable dust bags.
Real-Time Monitoring
The integrated control system allows users to monitor the operating status of the suction system in real time.
Adjustable Suction Levels
Choose from 5 manual suction levels, allowing the suction strength to be adjusted according to the working environment. Automatic operation is available at predefined suction levels.
Powerful Air Performance
XCEL delivers a maximum air pressure of 24 kPa, with maximum airflow of up to 3.9 m³/min, depending on the operating-voltage version.
Brushless Motor
The unit is equipped with a brushless suction motor, supporting dependable operation for CAD/CAM dust extraction.
CAD/CAM Machine Interface
A DIN-6P / RJ45 interface enables connection with compatible CAD/CAM equipment for integrated operation.
Large Dust Collection Capacity
The 8.71 L dust box provides substantial capacity for collecting dust generated during CAD/CAM procedures.
Anti-Static Suction Hose
XCEL is supplied with a 2.5-metre anti-static suction hose, helping provide flexible connection to the CAD/CAM equipment.
User-Friendly Touch Controls
The front control panel provides access to suction ON/OFF, filter cleaning, suction-level adjustment, settings, monitoring and control-lock functions.
| Specification | XCEL – AC 200–240 V Version | XCEL – AC 100–140 V Version |
| Operating Voltage | Single Phase AC 200–240 V~, 50/60 Hz | Single Phase AC 100–140 V~, 50/60 Hz |
| Rated Power | 800 W | 700 W |
| Current Protection – Input | 2 × 10 A (C/B) | 2 × 12 A (C/B) |
| Current Protection – Output | 3.15 A (Fuse) | 3.15 A (Fuse) |
| Maximum Air Flow | 3.9 m³/min | 3.8 m³/min |
| Maximum Air Pressure | 24 kPa | 24 kPa |
| Motor Type | Brushless Motor | Brushless Motor |
| Filter | Membrane Filter | Membrane Filter |
| Dust Box Capacity | 8.71 L | 8.71 L |
| Noise Level | Max. 70 dB (±5%) | Max. 70 dB (±5%) |
| Inlet Size – Inside | Ø48 mm | Ø48 mm |
| CAD/CAM Interface | DIN-6P / RJ45 Socket | DIN-6P / RJ45 Socket |
| Input Signal – Low | 0–2.5 V | 0–2.5 V |
| Input Signal – High | 4–24 V | 4–24 V |
| Output Signal – Max. Pull-Up Voltage | 24 V | 24 V |
| Output Signal – Max. Switching Current | 5 mA | 5 mA |
| Output Signal – Internal Series Resistor | 150 Ohm | 150 Ohm |
| Product Weight | 13 kg | 13 kg |
| Product Dimensions | 316(W) × 342(D) × 589(H) mm | 316(W) × 342(D) × 589(H) mm |
| Suction Levels | Manual: Levels 1–5; Auto: 2 levels (3rd & 5th) | Manual: Levels 1–5; Auto: 2 levels (3rd & 5th) |
| Motor Operating Temperature | 0–40°C | 0–40°C |
| Storage Temperature | -20–80°C | -20–80°C |
| Storage Humidity | RH 20–80% | RH 20–80% |
| Materials | ABS, PP, PETG | ABS, PP, PETG |
Standard Components: Main unit, filters, 2.5 m anti-static suction hose, power plug and CAD/CAM interface cable.
Product configurations, features and specifications are subject to change based on the original manufacturer's design and supply. Please confirm required features at the time of purchase. Read more
India's No.1 Dental Equipment Supplier
Rated 4.9 on Google by 6,050+ dentists & labs · Dedicated support team
XCEL is a bag-free dust extraction unit designed for CAD/CAM systems. It draws dust-laden air into the unit, passes it through the membrane filter and releases filtered air while the collected dust is retained in the system.
XCEL uses a vibration motor to shake dust and other particles from the membrane filter. The filter-cleaning function can be activated from the control panel, helping maintain the filter and reduce the need for frequent replacement.
Yes. XCEL provides five manual suction levels so users can adjust suction according to their requirements. The unit also provides two automatic suction settings corresponding to the 3rd and 5th levels.
Yes. XCEL is equipped with a DIN-6P / RJ45 CAD/CAM interface and is supplied with a CAD/CAM interface cable, allowing it to be integrated with compatible CAD/CAM equipment.
