Available · MELAG · Dental Autoclaves

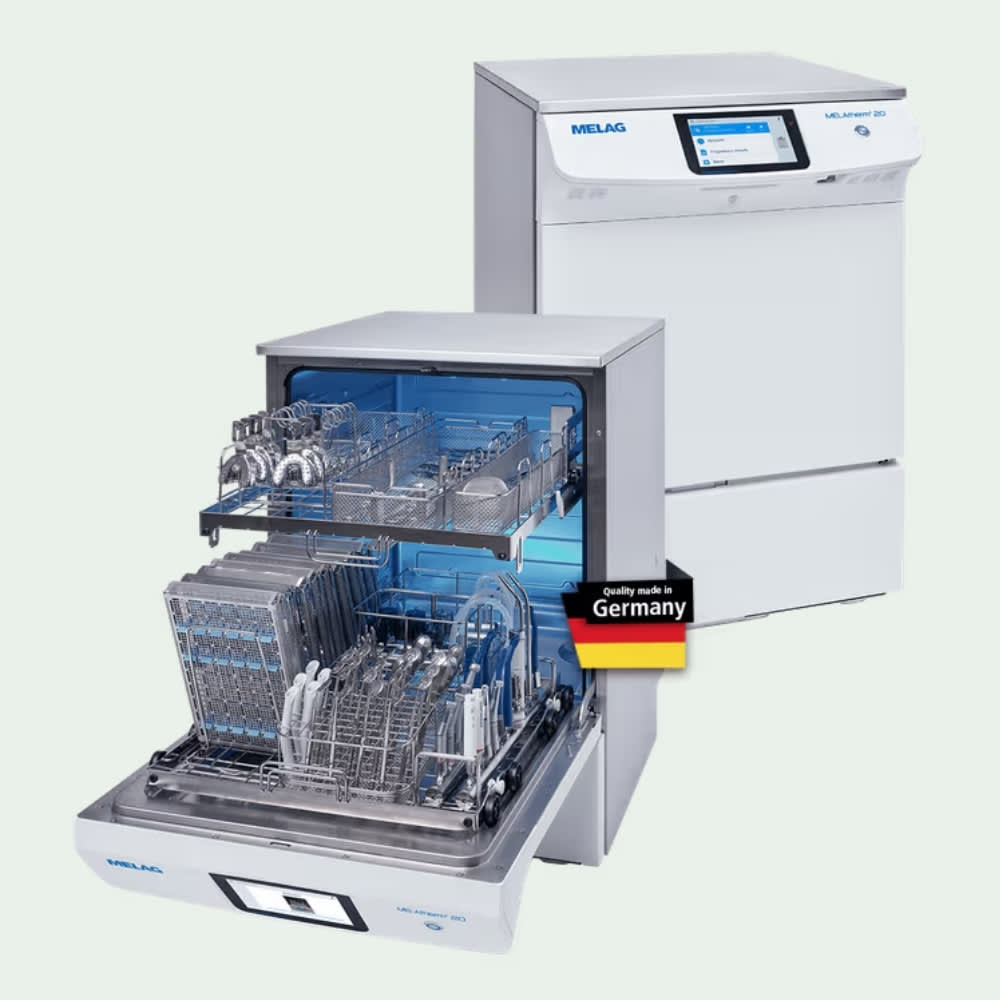

Melag MELAtherm 20

Q: What makes MELAtherm 20 different from MELAtherm 10?

MELAtherm 20 offers a larger 160L chamber , higher capacity (up to 90 patients), and significantly improved cleaning performance.

Q: How many instruments can it process in one cycle?

It can process instruments for up to 90 patients per cycle , depending on configuration.

Q: What is AquaBoost technology?

A high-pressure circulation and rinsing system that improves cleaning performance by up to 63% , ensuring superior results.

Q: Does it support automatic documentation?

Yes, it supports CF card, USB, and network-based documentation , ensuring full traceability and compliance

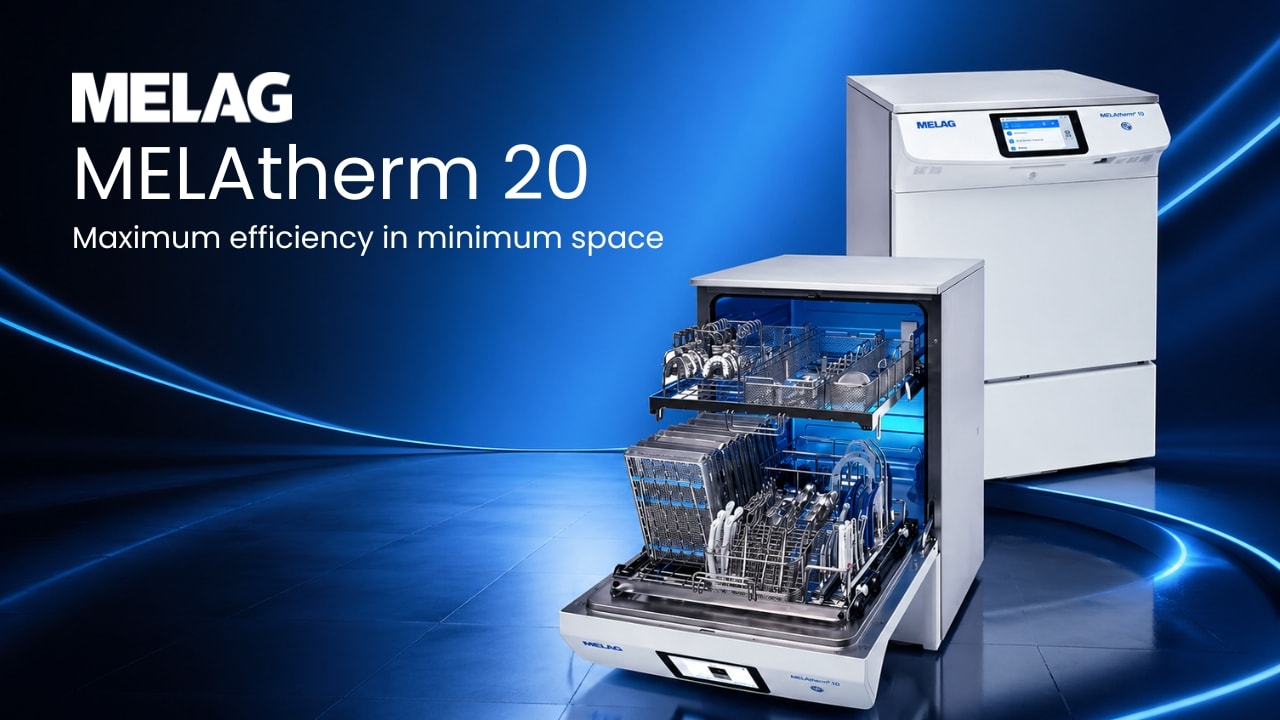

The Melag MELAtherm 20 Washer-Disinfector is a high-capacity, advanced instrument reprocessing system designed for clinics with demanding workloads. Featuring an XXL 160L chamber, powerful AquaBoost technology, and intelligent workflow automation, it delivers superior cleaning, disinfection, and drying in a single cycle. Built for efficiency, compliance, and scalability, it enables clinics to reprocess instruments for up to 90 patients per cycle making it an ideal solution for high-volume practices and centralized sterilization workflows.

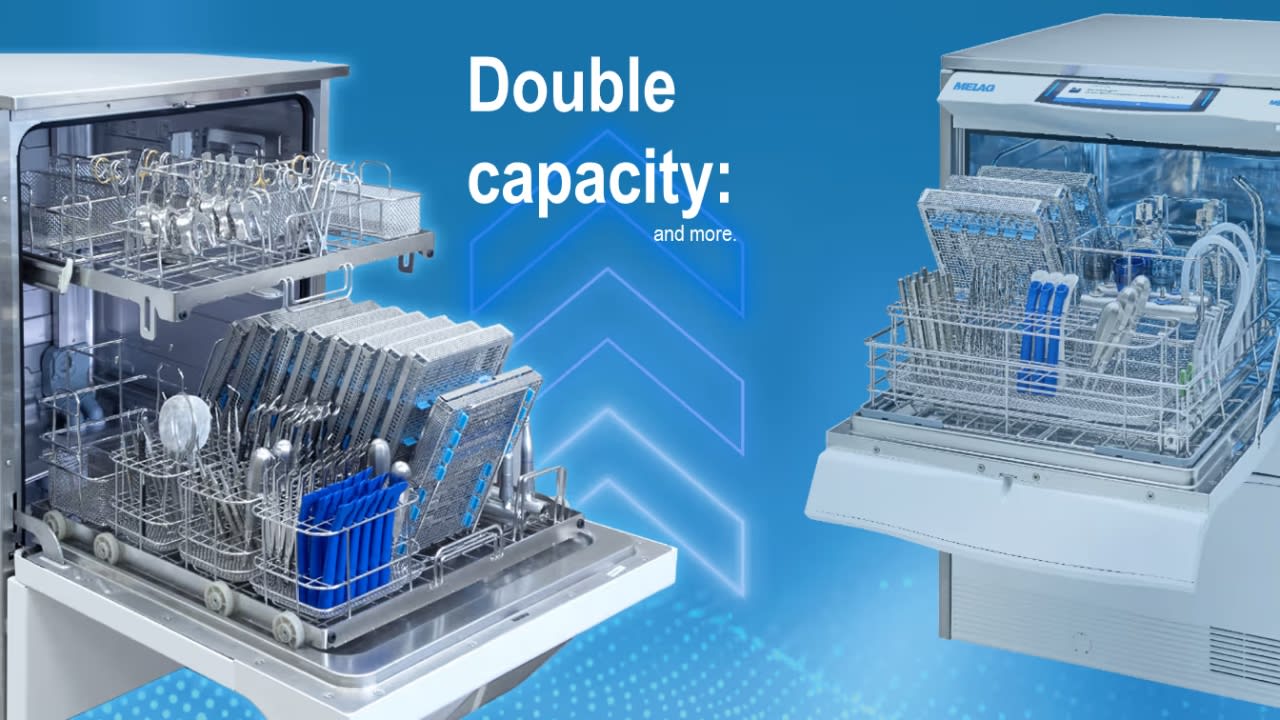

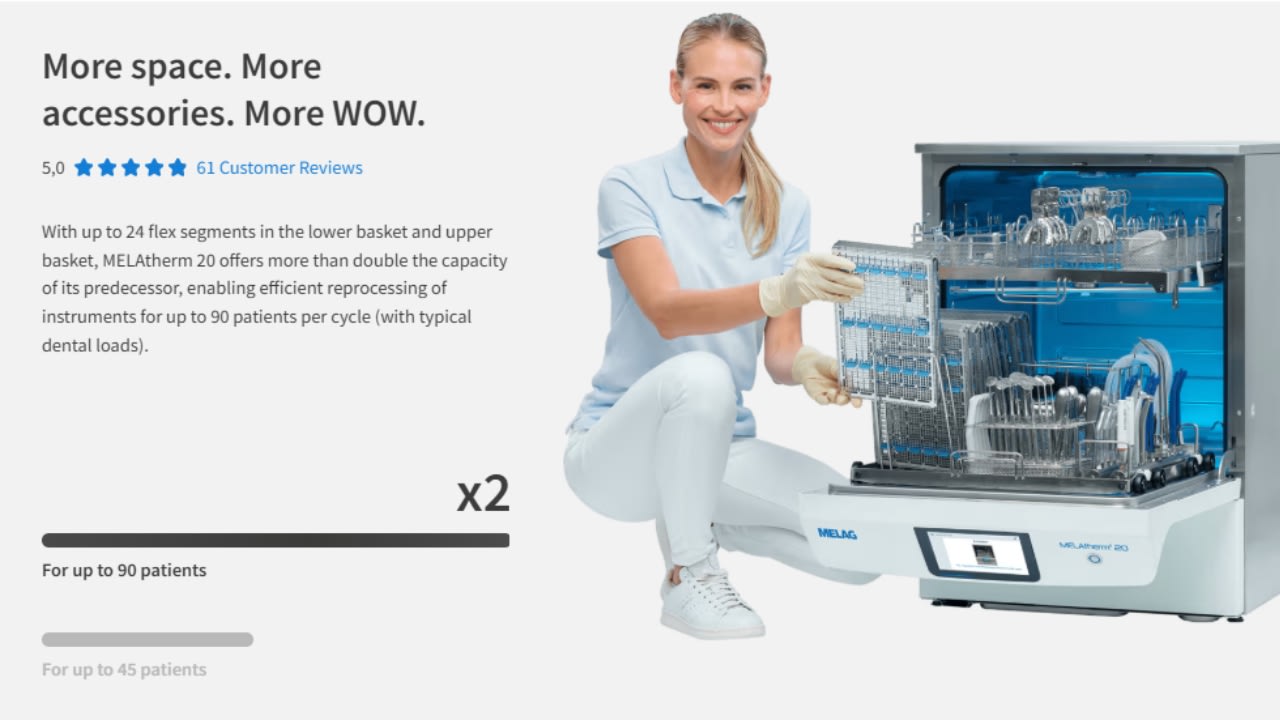

XXL Capacity & High Throughput

Reprocess instruments for up to 90 patients in a single cycle.
160L chamber with dual baskets and up to 24 flex segments for maximum loading.
Ideal for high-volume clinics and centralized sterilization rooms.

Advanced Cleaning with AquaBoost Technology

Powerful circulation pump with 3-arm rinsing system ensures deep cleaning.
Up to 63% improved cleaning performance compared to previous models.
Optimized for both solid and hollow instruments.

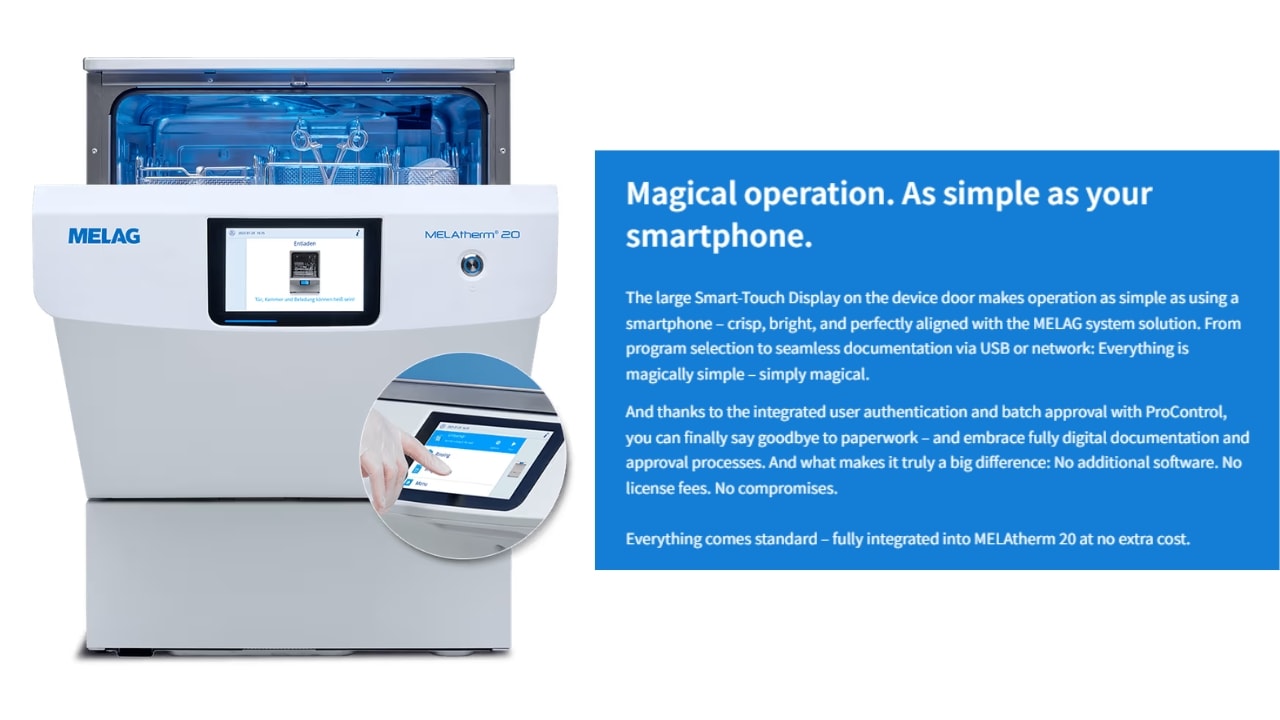

Smart Workflow & Intuitive Control

XXL Smart-Touch display enables easy program selection and operation.
Integrated video guidance and user-friendly interface reduce training time.
Streamlines daily workflow with minimal manual intervention.

Active & Passive Drying Systems

Available with activeDRY (internal + external drying) or passiveDRY (auto door opening).
Ensures complete drying and protects instruments from corrosion.
Enhances instrument longevity and readiness for immediate use.

Integrated Documentation & Compliance

CF card, USB, and network connectivity for seamless documentation.
ProControl system enables user authentication and batch approval.
Ensures full traceability and compliance with hygiene standards.

Flexible Loading & Customization

Compatible with 90+ baskets, adapters, and loading systems.
Supports tray systems, hollow instruments, and specialty workflows.
Adaptable for dental, medical, ENT, and surgical applications.

Efficiency, Safety & Cost Optimization

Reduces manual handling and improves occupational safety.
Automated workflows reduce time and operational costs significantly.
System pays for itself in approximately 25 months through efficiency gains.

Parameter	DTA Variant (400V)	DTB Variant (230V)
Device Type	Washer-Disinfector	Washer-Disinfector
Options Available	400V Active dry 400V Passive dry	230V Active dry 230V Passive dry
Device Dimensions (W × H × D)	59.8 × 81.8 × 73 cm	59.8 × 81.8 × 73 cm
Chamber Dimensions (W × H × D)	50.9 × 51.1 × 53.9 cm	50.9 × 51.1 × 53.9 cm
Chamber Volume	160 L	160 L
Weight	~74 kg	~74 kg
Power Supply	3N AC 318–415 V, 50 Hz	AC 220–240 V, 50 Hz
Power Consumption	9.1 kW	2.9 kW
Noise Level (Drying)	<73 dB(A)	<73 dB(A)
Heat Emission	1.186 kWh	1.186 kWh
Min Water Pressure	1.5 bar	1.5 bar
Recommended Flow Rate	8 L/min	8 L/min
Max Water Pressure	10 bar	10 bar
Cold Water Connection	3/4” internal thread	3/4” internal thread
Wastewater Connection	DN21	DN21
Protection Class	IP20	IP20
Cable Length	2 m	2 m

Product configurations, features and specifications are subject to change based on the original manufacturer's design and supply. Please confirm required features at the time of purchase. Read more
