B+ Cycle for Sterilization:

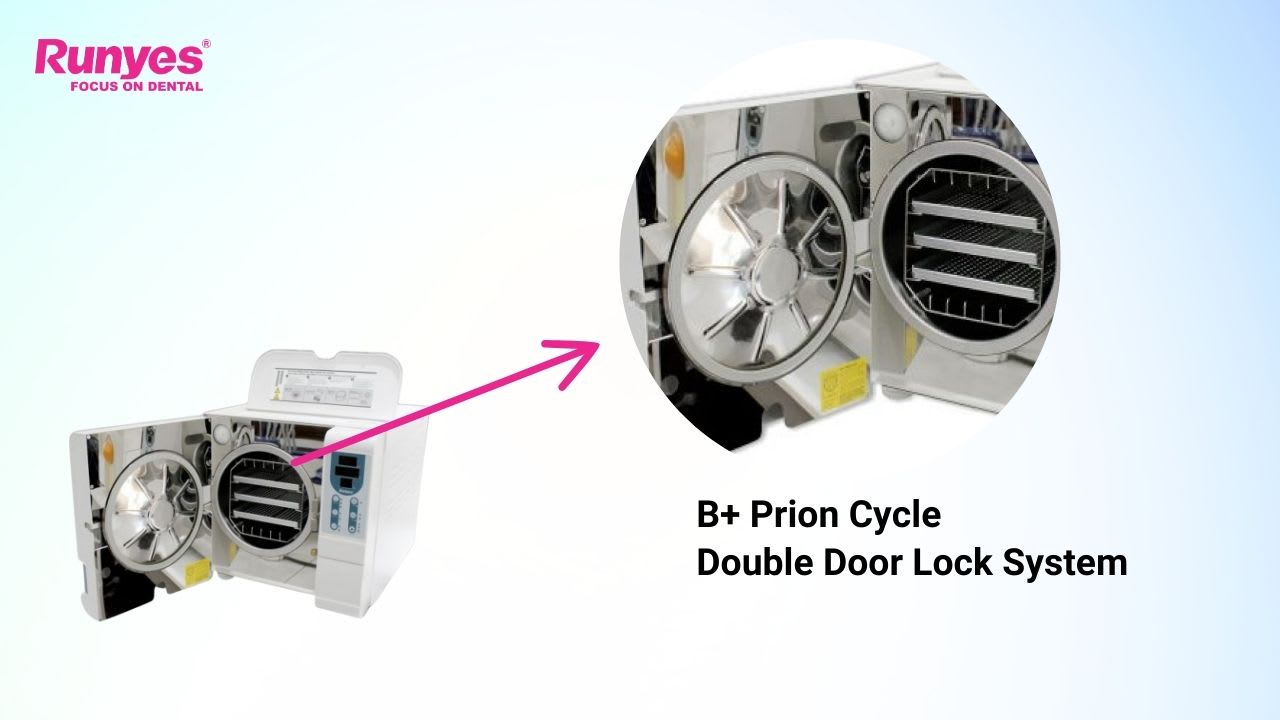

Prion Cycle (B+ Cycle) designed for effective sterilization.
Safety Features:
Double door lock system including airlock & mechanical lock to prevent incorrect operation and potential danger.
Steam Spray Barrier to protect instruments from damage.
Efficiency and Maintenance:
Water Filter in the chamber to prevent drainage pipe blockages.
Steam Generator Cleaning Program enhances autoclave efficiency.
Cooling Condenser in the waste-water tank to prevent tank deformation under heat.
-92 Kpa Increased Vacuum Pump Efficiency for better sterilization.
Cycle Storage and Management:
USB Functionality to store over 2000 sterilization cycles.
Step Button for selecting date, month, year, and time for cycle storage.
Reduced Full Cycle Time for quicker operations.
Autoclave Design and Functionality:
Triple Vacuum Cycle in a B-type front-loading design.
Drying Time Selection options: 1 min, 5 min, and default 15 min.
Multiple Sensors for precise real-time pressure and temperature monitoring.
Friendly Operation Interface for simplicity and ease of use.
3 Temperature Selections: 121°C, 134°C, and B+.
Dual Radiator Fans for fast cooling and Aluminum Foil Insulation Cotton for heat preservation.
Stainless Steel Connectors in internal parts for corrosion resistance.
Testing and Quality Assurance:
B & D Test for temperature penetration capacity checking.
Leak Test to monitor potential leakage.
Sterilization Capabilities:
Suitable for sterilizing unwrapped/wrapped, solid/hollow, porous/non-porous instruments.
B+ cycle at 134°C with an 18 min sterilization holding time.
Water Management and Sensors:
Two separate water tanks: Distilled water tank (3.5L) and Waste-water tank (5L).
Water Quality Check Sensor and Water Level Sensor in the distilled water tank.
Additional Features:
Provision to connect with an External Printer (RS232 Port).
ISO & CE Certified, ensuring quality and compliance.
